MediMap CSV Data Upload Guide
The below fields of information are required to be complete for a data upload process to work effectively. This guide provides specifications for the data fields in the .csv upload file.
How to Upload
The following steps with screenshots demonstrate how to upload a CSV spreadsheet into a Medi-Map facility/home interface. Please note - Only facility staff with manager level access can complete this task.
Click on Settings > CSV Uploads.

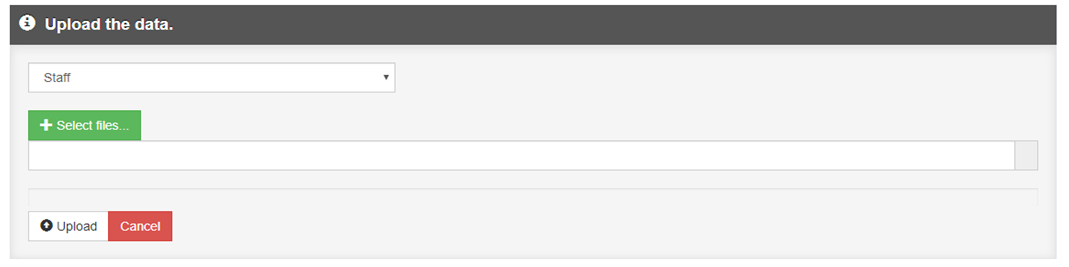

From this tab you can upload data for Staff or Residents. Select the type of upload from the drop-down box.
Click on the green button, “Select files”, which allows you to select the file to upload the data from. Please note if you cannot find the spreadsheet, ensure you have saved it in the format CSV (Comma Delimited) to move on.
Once the file is selected, then click on the “Upload” button. The upload process will check that the file is able to be processed which includes the following checks:
The file is in the correct format (CSV Comma Delimited)
All column headers are exactly correct and match the data summarised in the tables below.
The data in each of the columns is valid.

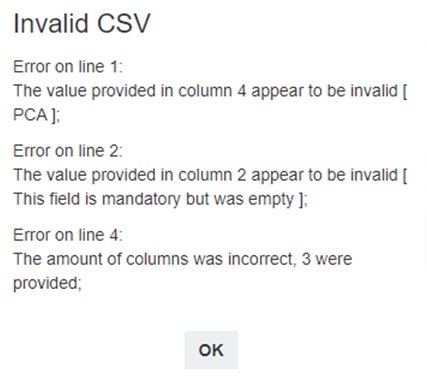

Any errors discovered will be shown in a pop-up box and the file will not be uploaded into temporary storage. You will need to be resolve any errors before attempting the upload process again to store the file contents in temporary storage. An example of errors is shown below.

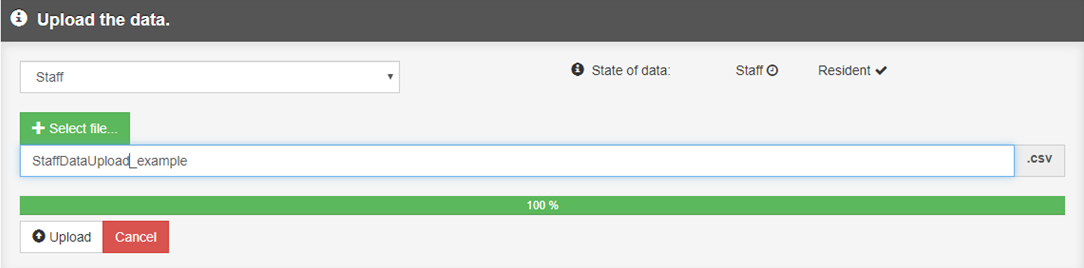

A successful upload of the file will be shown as outlined in the following image example -
When the file has been successfully uploaded as per the image above, email the MediMap support team to let them know that the data is ready to be released, please email onboarding@medimap.health with this request. A MediMap team member will release the data from temporary storage in the Medi-Map database into actual usage for the selected facility/home. You will then be advised via email once this has been completed.
Note: It is possible that a manual review of the data uploaded is required, the MediMap staff member will provide any details for you in this regard e.g. a possible duplicate Resident exists, they each have a different unique identifier but have the same First Name, Last Name and DOB.
Staff CSV Upload
Layout example:
Username, First Name, Last Name, UPN, Role
jdoe, Jane, Doe, jane@medimap.health, Registered NurseUser Upload File
| Field | Description | Data Type | Comment |
| Username | Username | Text (max length = 36) | Mandatory field |
| First Name | First name of the user | Text (max length = 36) | Mandatory field |
| Last Name | Last name of the user | Text (max length = 36) | Mandatory field |
| UPN | ‘User Principle Name’ of the user | Text (email regex pattern) | Mandatory field for SSO (SSO username / email address) |
| Role | Role of the user in MediMap | Text (max length = 50) | Mandatory field which must include one of the values in the following list (this list may change from time to time): HCA (Health Care Assistant) HCA - Second Checker PCA (Personal Care Assistant) Enrolled Nurse Registered Nurse Agency/Bureau Facility Administrator Manager Internationally Qualified Nurse (IQN) Nurse Student Trainee Intern Clinical Pharmacist Doctor Dietitian Midwife Physiotherapist
The role in MediMap determines the level of access a staff member has within the platform. For clarification on this, please reach out to your onboarding lead. |
Patient CSV Upload
Layout Examples
Australia
First Name, Preferred Name, Last Name, Gender, DOB, Resident Type of care, Room Number, Patient Unique Identifier Type, Patient Unique Identifier
Lois, Lo, Lane, Female, 1982-05-03, Residential, 07, Medicare Number, 2365764722
Clark, , Kent, Male, 1980-02-29, Hospital - HLC, 08, DVA, SVP180New Zealand
First Name, Preferred Name, Last Name, Gender, DOB, Resident Type of care, Room Number, Patient Unique Identifier Type, Patient Unique Identifier
Leslie, Les, Kyle, Unknown, 1945-07-02, Respite, 05, NHI, TTV6730Patient Upload File Details
| Field | Description | Data Type | Comment |
| First Name | First name of the resident | Text (max length = 36) | Mandatory field |
| Preferred Name | Preferred name of the resident | Text (max length = 36) | Optional field (ensure column header is still included, however leave the field blank). |
| Last Name | Last name of the resident | Text (max length = 36) | Mandatory field |
| Gender | Gender of the resident | Text (max length = 10) | Mandatory field which must include one of the following values: Female Male Unknown Other Note: if a customer does not wish to specify the gender of the resident in this file, they should use the value Unknown in this field and then manually change the value in MediMap after the bulk load has finished. |
| DOB | Date of birth of the resident | Text (max length = 10) | Mandatory field must be in format yyyy-mm-dd Note: if the csv file is opened in Excel it may try to change the date to a local system format e.g. dd/mm/yyyy. You should ensure that the DOB field values are formatted as text. The best way to ensure that this is correct is to open the csv file in a text editor (such as notepad) to view the format of the data before uploading. |
| Resident Type of care | Type of care that the resident receives | Text (max length = 32) | Mandatory field which must include one of the following values: Respite Residential Hospital – HLC Dementia Rest Home Psychogeriatric Hospital Palliative YPD Health Recovery Bed - HRB Chronically Med Ill – CMI Daycare - DC Supported Living Acute Undefined Orthopaedic Interim Care Interim Care ADS Community |
| Room Number | Room number in the facility of the resident | Text (max length = 50) | Optional field Ensure any single digits have a 0 included, eg – room number 5, enter as 05 |
| Patient Unique Identifier Type | Type of Unique Identifier for the resident | Text (max length = 36) | Mandatory field which must include one of the following values: NHI |
| Patient Unique Identifier | Unique Identifier value of the resident | Text (max length = 50) | Mandatory field. The data in this field will be validated based on the Patient Unique Identifier |
